Descripción del producto

Product Details

Items:

PVC Pipe Machine

Total Power:

70kw

Production Line Length:

Around 25meters

Barral Type:

HYPET Two Parts

Extruder:

55/120

Output:

220kg/h

Supply Power:

380V, 3phases

Main Motor:

30kw

Extruder Type:

Conic Twin Screw Type

Control System:

PLC With Touch Screen

Processing Material:

PVC Powder

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

Conduit Cable PVC Pipe Extruder

High Efficient PVC Pipe Extruder

Payment & Shipping Terms

Minimum Order Quantity

PVC Pipe Machine of 1set

Price

USD37000/set

Packaging Details

Pvc Pipe Machine LCL wooden case, FCL with film and rope fixing

Delivery Time

Pvc Pipe Machine 30-50days

Payment Terms

L/C, T/T, Western Union, MoneyGram

Supply Ability

Pvc Pipe Machine 200 sets /year

Product Description

High efficient 20-63mm PVC UPVC conduit cable Dual Pipe double head Production Line With ZS55/120 Extruder at good price

Pvc Pipe Machine Special features:

1. It can be equipped with ZS51/110 extruder output 200kg/h or it can be equipped with 65/132 high output 350kg/h for optional

2. Siemens PLC controls the entire production line, HYPET software, and high configuration

3. Bimetal barrel screw, shelf life 3 years

4. The vacuum box is natural color, paint-free, high-quality, and high-precision control.

5. Can be equipped with a double-tube packaging machine to achieve a fully automatic control production line

6. Top quality machine with enconomical price.

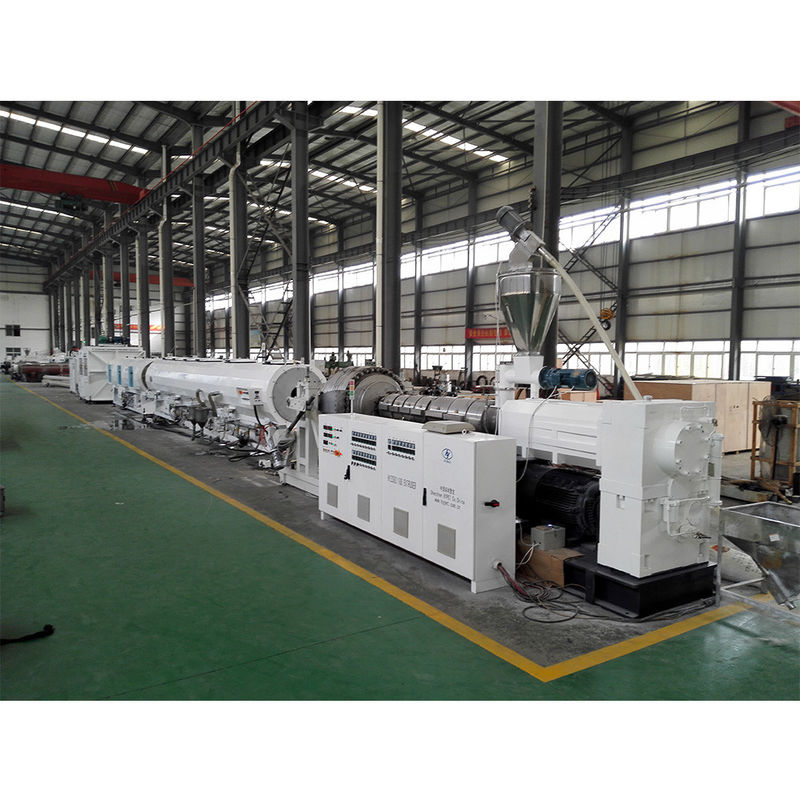

Pvc Pipe Machine Consists of the production line:

Pvc Pipe Twin Screw Plastic Double Screw Extruder Production Line Machine SJ55/110 SJ55/120 SJ51/105 SJ51/110 Extruder 0

SN	Parts name	Quantity
1	HYZS55/120 conic twin screw extruder	1 set
2	Auto loader in spring type for the extruder	1 set
3	Die head for 20~63mm in 3 pressure grade	1 set
4	Vacuum tank in double station	1 set

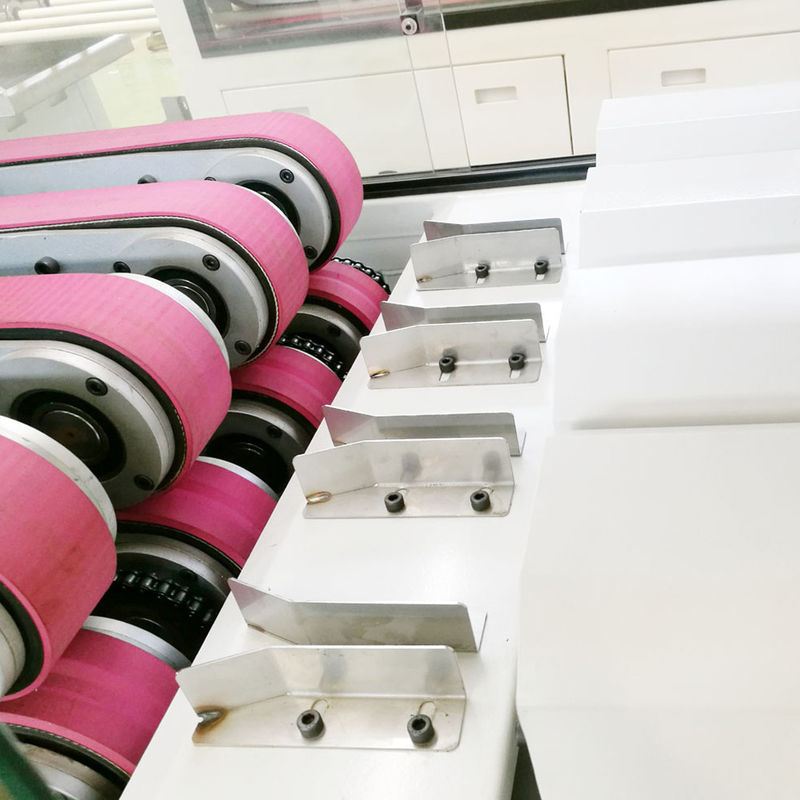

5	Haul off in double station	1 set
6	Dustless cutter in double station	1 set

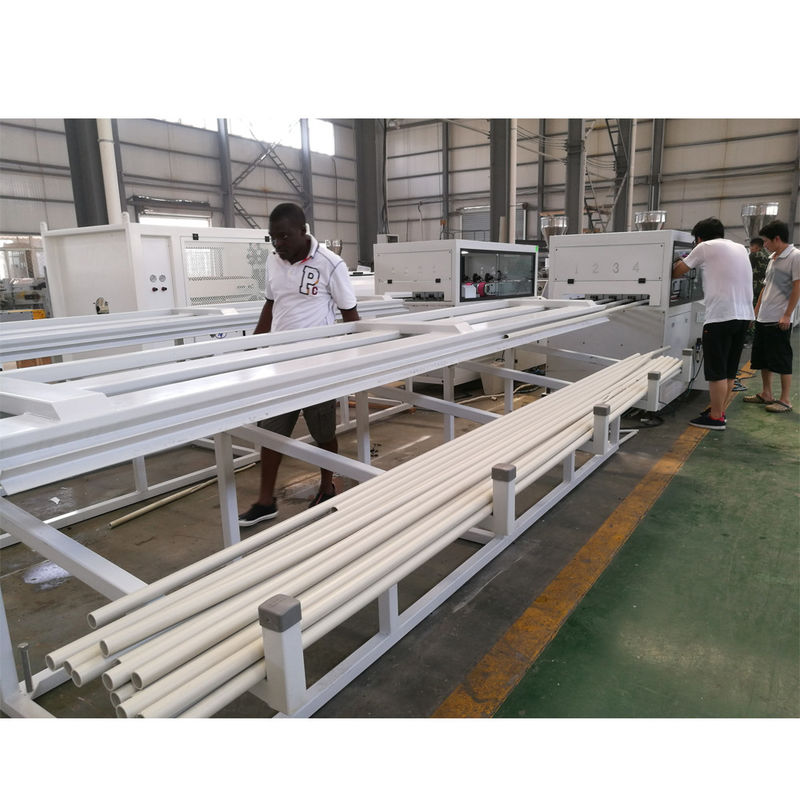

7	Stacker in double station	1 set

Pvc Pipe Machine Circumstances condition

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	55%~85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	200 kW
		Actual power consumption	28 kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz other can be option
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~15 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
4	Air condition	Flow	~0.9 m³/min

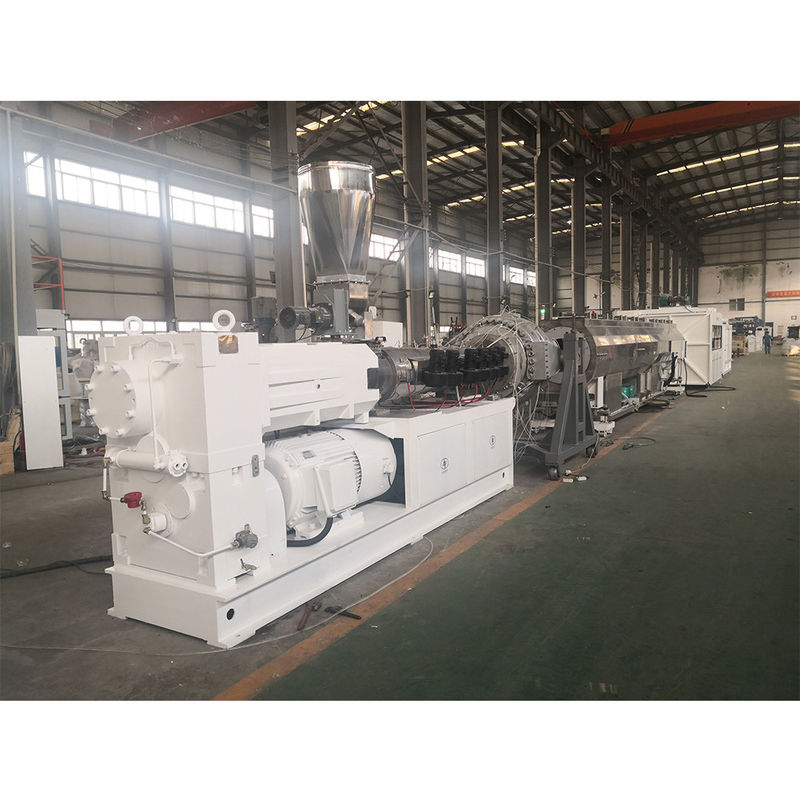

Specification of the ZS55/120

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYZS-55/120 conic twin screw
		Output	200-280kg/h for pipe 100-150kg/h for profile or more
		Center height	1000mm
		Dimension	2710 x 1250 x 2600mm
		Weight	2300kg
2	Screw	Diameter	Ø55/120 mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~38 r/min
		Core of the screw	Auto control for temperature (Oil cooling will be for option )
3	Barrel	Barrel Structure	In two parts, front part will be with special alloy inserted.
		Big Part of the barrel	38CrMoAlA
		Fron part of the barrel	SKD11 with heat treatment
		Inside finish	Nitrogen-filled (0.50~0.70mm depth)

4	Temp/ pressure transducer	Quality	China famous brand
		Structure	Separately senses both in pressure and temperature
		Cable	High isolated cable line
		Screen	Both in monitor or screen display
5	Heater and cooling fans	Heating control area	4 zones
		Heating way	Cast aluminum/ ceramics
		Heating power	16kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.2kw x 3 sets
		Water/oil cooling	One zone in front part for option
		Heat isolating	Special isolating material and structure for energy saving.
6	HYPET Gear box	Housing material	Ductile iron
		Gear material	20CrMnTiA
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
		Temperature of oil	Controlled by two system,
		Rubber sealer	Imported specal rubber sealer used
		Bearings	Wih famous and reliable brand.
7	Twin screw Dosing feeder	Supplying material motor	1.5 kW
		Speed range	1-50 RPM
		Powder bridge	Anti powder bridge with high Caco3
		Inverter	Delta heavy loader type
8	Vacuum degas with selector	Vacuum degree	-0.04Mpa
		Motor power	1.5 kw
		Vacuum tank	Easy to be clean
		Auto clean device	Air control auto Clean device for option.
9	Driving motor	AC motor power	30 kW in Siemens brand
9	Driving motor	AC inverter controller	Delta in heavy type

Pvc Pipe Twin Screw Plastic Double Screw Extruder Production Line Machine SJ55/110 SJ55/120 SJ51/105 SJ51/110 Extruder 1

Pvc Pipe Twin Screw Plastic Double Screw Extruder Production Line Machine SJ55/110 SJ55/120 SJ51/105 SJ51/110 Extruder 2
